Setting CleanSpray Gun Timers

These settings consist of a delay timer setting, a duration timer setting and a watchdog timer setting.

• The Delay timer setting delays gun triggering to allow time for the last-sprayed can to be rotated away, so that the coating is not affected by the cleaning spray.

• The Duration timer setting is the amount of time the gun sprays.

• The watchdog timer setting is a time interval, in seconds. The interval timer starts when the iTrax system receives a stop signal from the spray machine and no can is in the spray pocket. The timer stops when a run signal is received. If no run signal is received and the interval runs out, then the CleanSpray gun is triggered on for the spray duration. This keeps the lacquer spray gun nozzle clean. At the end of the spray duration the watchdog interval timer restarts. The cycle will repeat until a run signal is received.

Default Settings

 Delay = 1 ms

 Duration = 15 ms

Watchdog = 10 seconds

1. Touch the information and setup bar on the appropriate Spray Controller faceplate.

2. Select Spray Controller Configuration from the drop-down menu.

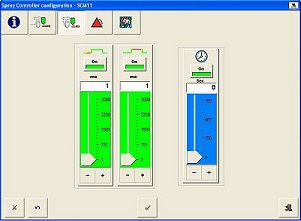

3. Touch the CleanSpray Gun button on the Spray Controller Configuration window.



4. Touch the On/Off buttons to enable or disable the settings.

5. Drag the slider or touch the – and + buttons to increase or decrease setting times.
